# Load packages
library(tidyverse)
library(survival)
library(survminer)
# Load Data
ninja <- read_csv("anw_2021_stage1.csv")American Ninja Warrior - Kaplan-Meier Survival Analyis
Kaplan-Meier
Log Rank test
Nonparametric tests
Exploring Survival Analysis using the Kaplan-Meier method with American Ninja Warrior data.
Welcome video
Introduction
In this module, you will explore American Ninja Warrior data from the 2021 stage 1 finals through the lens of survival analysis. Survival analysis is a statistical method used to analyze the time until an event of interest occurs (often this event is death). In this case, the obstacles will be our time, and the event of interest will be DEATH (we’re calling failing off an obstacle death).
American Ninja Warrior Logo
Image Source Wikimedia, Public Domain
One of the simplest methods for survival analysis is the Kaplan-Meier method. This method estimates the survival function, which is the probability that a subject survives past a certain time. The Kaplan-Meier method is non-parametric, meaning it makes no assumptions about the distribution of the survival times. It is a step function that decreases at each event time.
NOTE: R is the name of the programming language itself and RStudio is a convenient interface. To throw even more lingo in, you may be accessing RStudio through a web-based version called Posit Cloud. But R is the programming language you are learning :)
Getting started: American Ninja Warrior data
The first step to any analysis in R is to load necessary packages and data.
Running the following code will load the tidyverse, survival, and survminer packages and the anw_2021_stage1 data we will be using in this lab.
TIP: As you follow along in the lab, you should run each corresponding code chunk in your .qmd document. To “Run” a code chunk, you can press the green “Play” button in the top right corner of the code chunk in your .qmd. You can also place your cursor anywhere in the line(s) of code you want to run and press “command + return” (Mac) or “Ctrl + Enter” (Windows).
TIP: If you get an error while attempting to load the library or data, you may need to install the package or check the file path. You can install packages using the install.packages() function in R. Once you have installed a package, you can load it into your R environment using the library() function. If that is not the issue, you may need to check the file path to ensure the data is in the correct location.
We can use the glimpse() function to get a quick look at our ninja data. The dimensions of the dataset, the variable names, and the first few observations are displayed.
glimpse(ninja)Rows: 69
Columns: 5
$ name <chr> "Meagan Martin", "DeShawn Harris", "Heather Weissinger…
$ sex <chr> "F", "M", "F", "M", "F", "F", "M", "M", "M", "F", "F",…
$ obstacle <chr> "Slide Surfer", "Slide Surfer", "Swinging Blades", "Sw…
$ obstacle_number <dbl> 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, …
$ cause <chr> "Fall", "Fall", "Fall", "Fall", "Fall", "Fall", "Fall"…Use the head() function to view the first few rows of the dataset better.
head(ninja)# A tibble: 6 × 5
name sex obstacle obstacle_number cause
<chr> <chr> <chr> <dbl> <chr>
1 Meagan Martin F Slide Surfer 1 Fall
2 DeShawn Harris M Slide Surfer 1 Fall
3 Heather Weissinger F Swinging Blades 2 Fall
4 Cam Baumgartner M Swinging Blades 2 Fall
5 Brittney Durant F Swinging Blades 2 Fall
6 Casey Rothschild F Swinging Blades 2 Fall
TIP: Type your answers to each exercise in the .qmd document.
Terms to know
Before proceeding with the survival analysis, let’s make sure we understand American Ninja Warrior and some of it’s vocabulary to help us climb our way through this lab.
How does American Ninja Warrior work?
American Ninja Warrior is an NBC competition show where participants attempt to complete a series of obstacle courses of increasing difficulty. In a single obstacle course, the competitors must complete a series of obstacles in a row. If they fail an obstacle (usually this happens when they fall into the water below), they are eliminated from the competition. The competitors also have a time limit to complete the course. The competitors are ranked based on how far they get in the course and how quickly they complete it.
Most of the obstacles are designed to test the competitors’ upper body strength. Some obstacles require balance and agility though.
The warped wall is arguably the most famous, although now least difficult, obstacle on an American Ninja Warrior course. The warped wall is a curved wall that competitors must run up and grab the top of. The warped wall is on every course and is often the final obstacle, although this is not the case on the Finals courses.
The warped wall was previously 14 feet and is now 14.5 feet tall. They have even had a 18 foot warped wall on the show.
Image Source: Dustin Batt, CC BY-SA 2.0, via Wikimedia Commons
The obstacles in American Ninja Warrior are all given names. For example, the famed Warped Wall is a curved wall that competitors must run up and grab the top of. The Salmon Ladder is a series of rungs that competitors must move up by jumping and pulling themselves up.
Watch Enzo Wilson complete the American Ninja Warrior course at the 2021 Finals Stage 1 (Season 13) in the video below.
Variable Descriptions
The ninja data you’ll be analyzing in this lab provides the individual run information for each ninja in the 2021 Finals Stage 1 (Season 13). The data includes the ninja’s name, their sex, the obstacle they failed on, and the cause of that failure.
Variable Descriptions
| Variable | Description |
|---|---|
name |
Name of the American Ninja Warrior |
sex |
Sex of the American Ninja Warrior (M/F) |
obstacle |
The name of the obstacle the ninja failed on |
obstacle_number |
The obstacles’ place in the run |
cause |
What caused the ninja to fail (Fall/Time/Complete) |
Points of Confusion
Use the following code to create a table of the obstacle names and their corresponding obstacle numbers. This will help you understand the order of the obstacles in the course.
ninja |>
distinct(obstacle, obstacle_number)# A tibble: 10 × 2
obstacle obstacle_number
<chr> <dbl>
1 Slide Surfer 1
2 Swinging Blades 2
3 Double Dipper 3
4 Jumping Spider 4
5 Tire Run 5
6 Dipping Birds 7
7 The High Road 8
8 Fly Hooks 8
9 Cargo Net 9
10 Complete 10It can be seen quickly that there is no obstacle number 6 in the data and that there are 2 obstacles with number 8. Both of these appear confusing at first, but they have logical explanations.
The missing obstacle number 6 is due to the fact that no ninja failed on obstacle 6. Some quick research tells us that obstacle 6 was the warped wall.
Read about the 2021 Stage 1 Split Decision here.
The duplicate obstacle number 8 is due to the fact that Stage One of the 2021 Finals allowed a split-decision. This means that competitors could choose between two different obstacles for obstacle 8.
Another important thing to note is that obstacle 10 is not really an obstacle, but rather the end of the course.
Lastly, one competitor Joe Moravsky ran the course twice (falling the first time and completing it the second time). This is because he was the Safety Pass Winner from the previous round. The Safety Pass allows a competitor to run the course again if they fail the first time. This poses some questions about how to handle this observation. We could
Include both runs in the analysis, treating them as separate observations.
Include only the first run in the analysis.
Include only the second run in the analysis.
If we include the second run in the analysis, we are neglecting the fact that Joe Moravsky had already attempted the course once and may have learned from his mistakes.
If we include the first run in the analysis, an argument could be made that Moravsky only failed the first time because he knew he had a second chance.
In most survival analysis situations, an individual would not be capable of participating twice from the beginning (after all if death were truly the event of interest, it would be safe to say there is no second chance). Therefore, we will only include the first run in the analysis.
Run the code below to remove the second run from the data.
ninja <- ninja |>
filter(name != "Joe Moravsky (Safety Pass)")Now that we’ve cleared some of the muddiness, let’s move on to the fun stuff!
Kaplan-Meier Survival Analysis
Censored Data
In survival analysis, we often have need to censor data. Censored data occurs when the event of interest has not occurred for some of the observations. In our case, the event of interest is the failure of a competitor on an obstacle. If a competitor completes the course, we do not know which obstacle they would have failed on. Additionally if the time limit is reached, we do not know which obstacle the competitor would have failed on, although we do know that they didn’t fail on any of the ones they completed before time was up. Both of these situations are examples of censored data.
Use the code below to create a new column called censor in the ninja data that is a binary indicator of whether or not the observation should be censored. This column will be used to indicate whether the data is censored or not.
# Makes a column called censor that is 1 if the competitor failed and 0 if they completed the course or ran out of time
ninja <- ninja |>
mutate(censor = if_else(cause %in% c("Complete", "Time"), 0, 1))Calculating Survival Probabilities
The Kaplan-Meier estimator uses information from all of the observations in the data and considers survival to a certain point in time as a series of steps defined at the observed survival times.
In order to calculate the probability of surviving past a certain point in time (past a certain obstacle in this case), the conditional probability of surviving past that point given that the competitor has survived up to that point must be calculated first.
The formula for the conditional probability of surviving past a point in time (\(t_i\)) given that the competitor has survived up to that point in time(\(t_{i-1}\)) is:
Note: This function could also be written as \(P(T > t_i | T \geq t_{i-1}) = \frac{n_i - d_i}{n_i}\)
\(P(T \geq t_i | T \geq t_{i-1}) = 1- \frac{d_i}{n_i}\)
Where:
\(d_i\) is the number of competitors that failed at time \(t_i\)
\(n_i\) is the number of competitors that were at risk at time \(t_i\)
The Kaplan-Meier estimator is the product of the conditional probabilities of surviving past each point in time up through that point in time.
\(\hat{S}(t) = \prod_{t_i \leq t} (1 - \frac{d_i}{n_i})\)
Note: Censored data does not count in the at risk competitors
where \(n_i = n_{i-1} - d_{i-1} - c_{i-1}\)
For example if we have this data:
# Setting a seed for reproducibility
set.seed(123)
# Creating fake data
fake_data <- tibble(obstacle_number = c(1:5, 4:5), censor = c(rep(1, 5), rep(0, 2))) |>
sample_n(25, replace = TRUE)
head(fake_data)# A tibble: 6 × 2
obstacle_number censor
<int> <dbl>
1 5 0
2 5 0
3 3 1
4 4 0
5 3 1
6 2 1And we wanted to calculate the Kaplan-Meier estimate of surviving past obstacle 2 we would need to find the following probabilities:
\(P(T > 1 | T > 0) = P(T > 1) = 1 - \frac{\text{number of competitors that failed at obstacle 1}}{\text{number of competitors that attempted obstacle 1}}\)
\(P(T > 2 | T > 1) = 1 - \frac{\text{number of competitors that failed at obstacle 2}}{\text{number of competitors that attempted obstacle 2}}\)
The following code calculates the first two probabilities:
fake_data_summary <- fake_data |>
filter(obstacle_number <= 2) |>
group_by(obstacle_number) |>
summarize(fails = sum(censor == 1)) |>
ungroup() |>
mutate(at_risk = 25 - cumsum(fails),
cond_prob = 1 - fails/at_risk)
fake_data_summary# A tibble: 2 × 4
obstacle_number fails at_risk cond_prob
<int> <int> <dbl> <dbl>
1 1 4 21 0.810
2 2 3 18 0.833We would then need to multiply these two probabilities together to get the Kaplan-Meier estimate of surviving past obstacle 2.
\(P(T > 2) = P(T > 1) * P(T > 2 | T > 1)\)
The following code calculates the Kaplan-Meier estimate of surviving past obstacle 2:
kaplan_meier <- fake_data_summary |>
summarize(kaplan_meier = prod(cond_prob))The Kaplan-Meier estimate of surviving past obstacle 2 in this fake example is 0.6746032.
Kaplan-Meier Estimator Manual Calculation
The ninja data frame contains information about individual competitors in the ninja competition. We will need to summarize the data to calculate the Kaplan-Meier estimator manually.
Note: The censored column is the number of competitors that were censored at each obstacle. The only reason that this number is not 0 at any obstacle that is not number 10 (completed) is because some competitors ran out of time on that obstacle.
Note: The lag function shifts the cumsum of the fails column down one row. The default = 0 argument fills in the first row with 0. This is necessary to help calculate the number of competitors at risk at each obstacle. Note that the lag function is not used in conjunction with the cumsumfunction for the censored column.
TIP: You can pipe the data frame into the mutate function to create a new column.
TIP: The mutate function works like so: data_frame |> mutate(new_column = calculation)
Note: The cumprod function calculates the cumulative product of the values given to it.
Type ?geom_step, ?geom_point, or ?ggplot in the console to learn more about these functions.
TIP: Remember that you can add the + operator to continue adding layers to the plot like seen below
ggplot(your_data, aes(x = time_var, y = kaplan_meier_var)) +
geom_step() +
geom_point()TIP: You can also add labels to the plot using the labs function like seen below
ggplot(your_data, aes(x = time_var, y = kaplan_meier_var)) +
geom_step() +
geom_point() +
labs(title = "Your Title",
x = "X Axis Label",
y = "Y Axis Label")Using R to Calculate the Kaplan-Meier Estimator
Phew! That was a lot of tedious work to calculate and plot the Kaplan-Meier estimator manually. Luckily, there is a much easier way to calculate the Kaplan-Meier estimator using R.
The survival package in R provides a function called survfit that can be used to calculate the Kaplan-Meier estimator. The survfit function requires a Surv object as input. The Surv object is created using the Surv function, which requires two arguments:
The time to event data. The time to event data is the time at which the event occurred or the time at which the individual was censored. In our case this is the
obstacle_numberin ourninjadata.The event status. The event status is a binary variable that indicates whether the event occurred or the individual was censored. The event status is coded as 1 if the event occurred and 0 if the individual was censored. This is contained in the
censorcolumn of theninjadata.
Below a survfit model is created for the ninja dataset and the results are stored in the ninja_km object.
ninja_km <- survfit(Surv(obstacle_number, censor) ~ 1, data = ninja)The computations for calculating the Confidence Interval for the K-M Estimate are fairly complex. The method most commonly used is called the log-log survival function and was proposed by Kalbfleisch and Prentice (2002). This function is computed by \(ln(-ln[\hat{S}(t)])\) with variance derived from the delta method and calculated by \[ \frac{1}{[ln(\hat{S}(t))]^2}\sum_{t_i\leq{t}}\frac{d_i}{n_i(n_i - d_i)} \].
The endpoints for the confidence interval for the log-log survival function are therefore found by \(ln(-ln[\hat{S}(t)]) \pm Z_{1-\alpha / 2} SE [ln(-ln[\hat{S}(t)]) ]\)
And the endpoints expressed by the computer and seen in the summary are \(exp[-exp(\hat{c}_u)] \text{ and } exp[-exp(\hat{c}_l)]\)
Quartile Interpretation
The three quartiles are common statistics to look at when doing a survival analysis. The interpretations of these are as follows:
Note: If the data is uncensored the estimate is just the median of the data. If the data is censored, the KM estimate is used to find these by finding the time at which it drops below the percentile
25th Percentile- 75% of the people survive past this point in time
Median- 50% of the people will survive past this time
75th Percentile- 25% survive past this time
Plotting with R
After fitting a Kaplan-Meier model, we can use the ggsurvplot function from the survminer package to plot the Kaplan-Meier estimator. The ggsurvplot function requires the Kaplan-Meier model as input.
Below is an example of how easy it is to plot the Kaplan-Meier estimator using R.
ggsurvplot(ninja_km,
conf.int = TRUE)
Kaplan-Meier Estimator by Groups
Sometimes we may want to compare the survival probabilities of different groups of individuals. For example, we may want to compare survival probabilities based on age, gender, treatment group, or a variety of other factors.
In our data set, we have a variable called sex that indicates the gender of the competitor. We can use this variable to compare the survival probabilities for males and females.
The Kaplan-Meier estimator can be calculated for different groups of individuals quite easily in R. We simply have to add the variable sex to our function in the model to do this.
ninja_km_gender <- survfit(Surv(obstacle_number,
censor)~ sex, data = ninja)A plot can be created to help us compare these groups.
Fun Fact: Jesse Labreck was the only woman to complete the 2021 American Ninja Warrior Stage 1 Finals Course.
You can watch her incredible run below

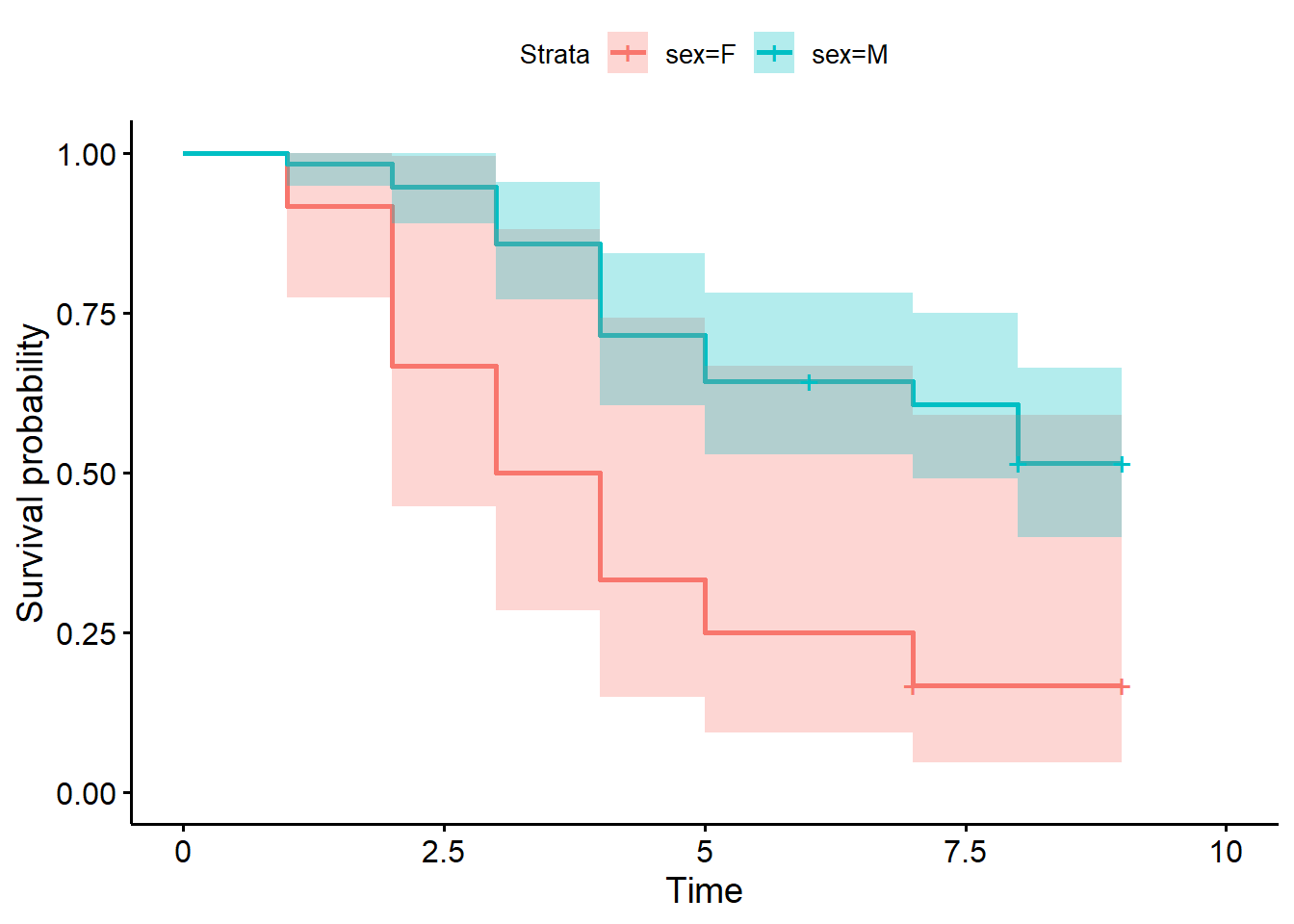

ggsurvplot(ninja_km_gender,
conf.int = TRUE)
The Log-Rank Test
The Log-Rank Test is a statistical test used to compare the survival probabilities of two or more groups. The test is used to determine if there is a statistically significant difference between the survival probabilities of the groups.
The hypotheses for our log-rank test are as follows:
- \(H_0: S_M(t) = S_F(t)\) for all \(t\)
- \(H_a: S_M(t) \neq S_F(t)\) for at least one \(t\)
where \(S_M(t)\) is the survival probability for males at time \(t\) and \(S_F(t)\) is the survival probability for females at time \(t\).
When comparing two groups like this, we can calculate the expected number of deaths in each group. Below is the formula for calculating the number of expected deaths for group 0 at time \(t_i\):
\[\hat{e}_{0i} = \frac{n_{0i}d_i}{n_i}\]
where \(n_{0i}\) is the number of individuals at risk in group 0 at time \(t_i\), \(d_i\) is the total number of deaths at time \(t_i\), and \(n_i\) is the total number of individuals at risk at time \(t_i\).
The variance estimator is drawn from the hypergeometric distribution. The formula for the variance of the number of deaths in group 0 at time \(t_i\) is:
\[\hat{v}_{0i} = \frac{n_{0i}n_{1i}d_i(n_i - d_i)}{n_i^2(n_i - 1)}\]
where \(n_{0i}\) is the number of individuals at risk in group 0 at time \(t_i\), \(n_{1i}\) is the number of individuals at risk in group 1 at time \(t_i\), \(d_i\) is the total number of deaths at time \(t_i\), and \(n_i\) is the total number of individuals at risk at time \(t_i\).
The test statistic is calculated as the square of the sum of the differences between the observed and expected number of deaths for the group divided by the sum of the variance of the number of deaths for the group at each time point. The formula for the test statistic is as follows:
\[Q = \frac{[\sum_{i=1}^m (d_{0i} - \hat{e}_{0i})]^2}{\sum_{i=1}^m \hat{v}_{0i}}\]
Using the null hypothesis, the p-value can be calculated using the chi-squared distribution with 1 degree of freedom.
\[p = P(X^2(1) > Q)\]
NOTE: This use of the chi-squared distribution assumes that the censoring is independent of the group.
NOTE: The degrees of freedom for the chi-squared distribution is 1 because we are comparing two groups. If we were comparing more than two groups, the degrees of freedom would be the number of groups minus 1.
Thankfully R has a built-in function to perform the log-rank test. The survdiff function in the survival package can be used to perform the log-rank test. The survdiff function requires a Surv object as input. It will then perform the log-rank test and return the test statistic and p-value.
NOTE: The log-rank test is a non-parametric test. This means that it does not assume that the data is normally distributed.
The code below runs the log-rank test on the ninja data set to compare the survival of male and female competitors.
ninja_km_diff <- survdiff(Surv(obstacle_number,
censor) ~ sex, data = ninja)Other Nonparametric Tests
Although the survdiff function uses the most common test for comparing Kaplan-Meier curves, there are a variety of other methods that can be used. These other methods developed because of the log rank test’s greatest weakness: It weights all time points equally even though there are fewer people at risk later than at the beginning. These methods are all similar to a standard log-rank test but attempt to weight time points in order to detect differences better throughout time as opposed to the end, which is where the log-rank test finds most of its differences. The ratio of the observed and expected number of deaths is calculated in a similar manner but with weights applied as seen below:
\[Q = \frac{[\sum_{i=1}^m w_i(d_0i - \hat{e}_{0i})]^2}{\sum_{i=1}^m w_i^2\hat{v}_{0i}}\]
Below some of the other methods that can be used are broken down, with their weighting and purpose explained:
Wilcoxon (Gehan-Breslow) Test: This test gives more weight to early time points based on the number of individuals at risk. Its weighting is: \[w_i = n_i\]
Tarone-Ware Test: This test gives more weight to time points with more individuals at risk, but less heavily than the Gehan-Breslow test. Its weighting is: \[w_i = \sqrt{n_i}\]
Peto-Prentice Test: This test also gives more weight to earlier time points, but not as much as the Gehan-Breslow test. Its weighting is:
\[w_i = \tilde{S}(t_{(i)})\] where \[\tilde{S}(t_{(i)}) = \prod_{t_{(j)}<t} \left(1 - \frac{d_j}{n_j}\right)\]
- Fleming-Harrington Test: This test allows the user to chose \(\rho\) and \(q\) values to weight the time points. If \(\rho\) is larger it will weight the earlier time points more heavily, and if \(q\) is larger it will weight the later time points more heavily. Its weighting is:
\[w_i = [\tilde{S}(t_{(i-1)})]^{\rho}[1 - \tilde{S}(t_{(i-1)})]^q\] where \[\tilde{S}(t_{(i- 1)}) = \text{Kaplan-Meier Estimate at time } t_{i-1}\]
Thankfully the surv_pvalue function in the survminer package can be used to calculate the p-value for all of these tests by changing the method argument. See the table below for the different method arguments to use:
| Test | Method Argument |
|---|---|
| Log Rank Test | Default- no argument needed |
| Wilcoxon/Gehan-Breslow | method = “n” |
| Tarone-Ware | method = “TW” |
| Peto-Prentice | method = “PP” |
| Fleming-Harrington | method = “FH” |
The surv_pvalue function does need a survfit object as input. We can use the ninja_km_gender object created earlier to check the p-values for the different methods.
More Practice
Read in the anw_2023_stage1 data to complete the following problems.
The winner of the 2023 American Ninja Warrior competition was Vance Walker. Walker won $1 million for his victory.
Fun Fact: Thread the Needle, the 8th obstacle on the 2021 Finals Stage 1 course, saw the highest failure rate of any obstacle. It had not previously been used on the Finals Stage 1 courses.
Click here to read more about Edward Kaplan and Paul Meier’s work and how it has impacted the field of Statistics, particularly in regards to biostatistics.
Conclusion
In this module, you have learned about the Kaplan-Meier estimator, which is used to estimate the survival function. The importance of censoring was discussed, and you learned how to calculate the Kaplan-Meier estimates. You also learned how to compare survival curves using the log-rank test and how to interpret the results.
The Kaplan-Meier estimates for American Ninja Warrior competitors helped us see the likelihood that a competitor survives past a certain number of obstacles in the Finals. Survival curves and nonparametric tests for different genders of American Ninja Warrior competitors helped us see that there is a significant difference in the survival rates of males and females.
